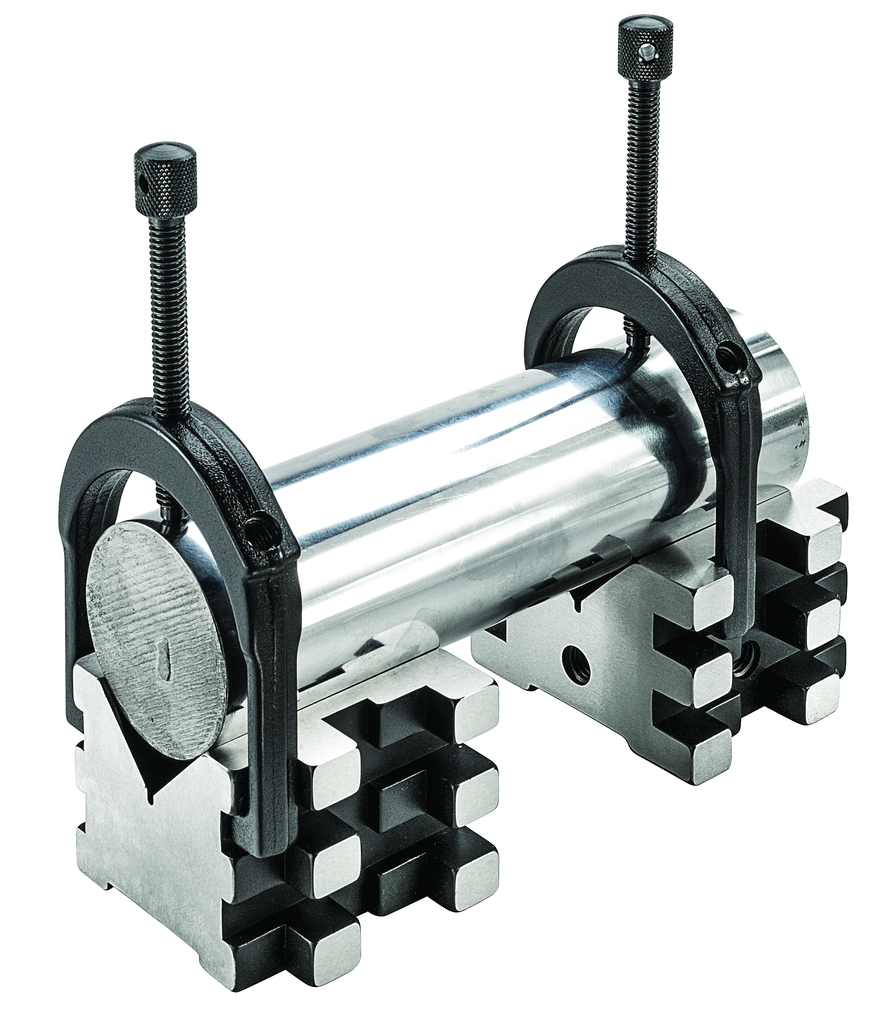

V-BLOCKS (2) & CLAMPS (MATCHING PAIR) 568C

Item Code: 0681.52592
Manufacturer Ref 568C
  • Hardened steel, precision ground parallel and square
  • Clamps have screw holes at 45 Deg and 90 Deg to hold either square or round work
  • Stepped groove construction permits high or low clamp mounting or small or large work
  • Clamps do not project over the width of the block, permitting it to be used on the base, ends or sides
  • 3/8-16 tapped holes permit mounting blocks on faceplates or angle irons
  • Each block is 2-1/2" long x 3" wide x 2" high (63 x 75 x 50mm)

Fetching product details


Description

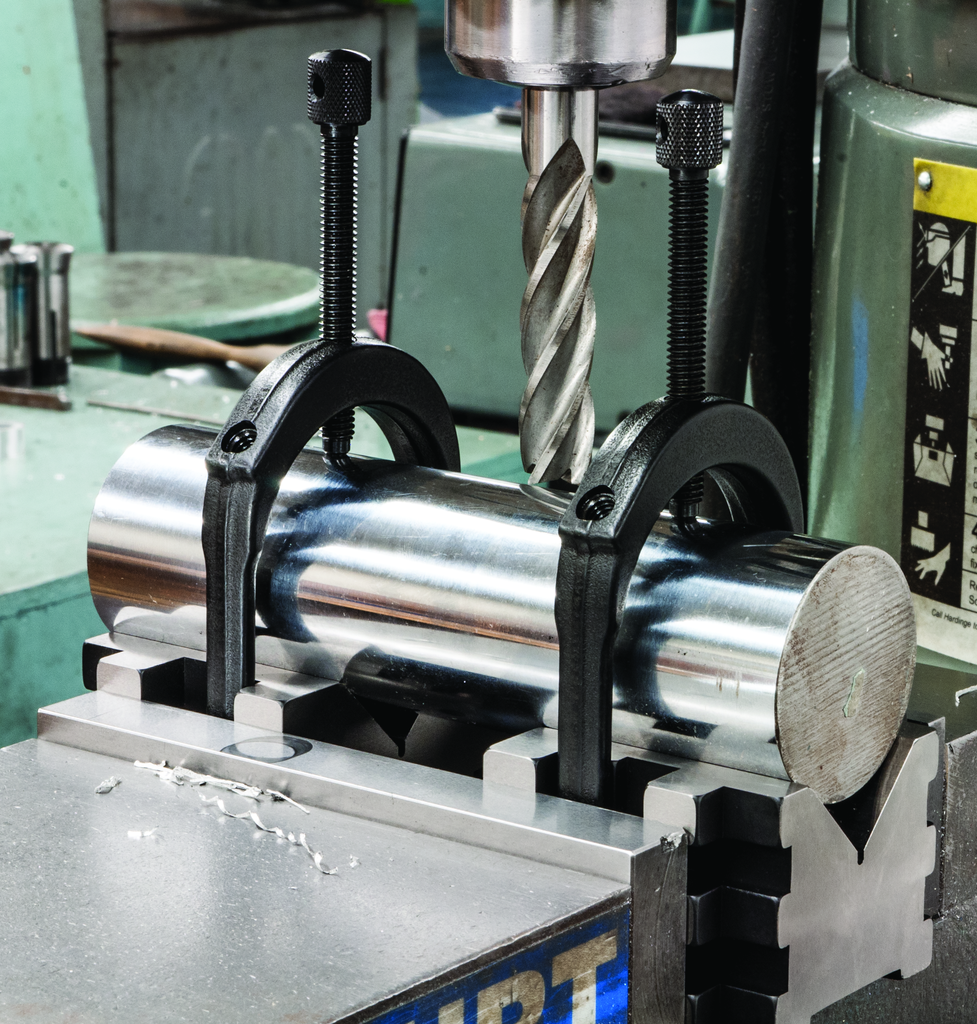

Starrett V-Blocks come in a variety of styles to suit the numerous requirements of machinists. They are for general shop use and layout work, as well as for holding stock in place during light-duty milling, drilling, and grinding operations. All clamp screws have a hole to help secure the workpiece. V-Blocks (2) and Clamps (Matched Pair).

Specifications

  • Brand : Starrett
  • Capacity : 1-7/16 in
  • Category : Setup, Layout & Alignment Tools
  • Country of Origin : USA
